YAOJIA adopts two Alignment units structure, it guarantees the stability of the inspection quality. It greatly reduces the labor cost, more efficient and reliable.

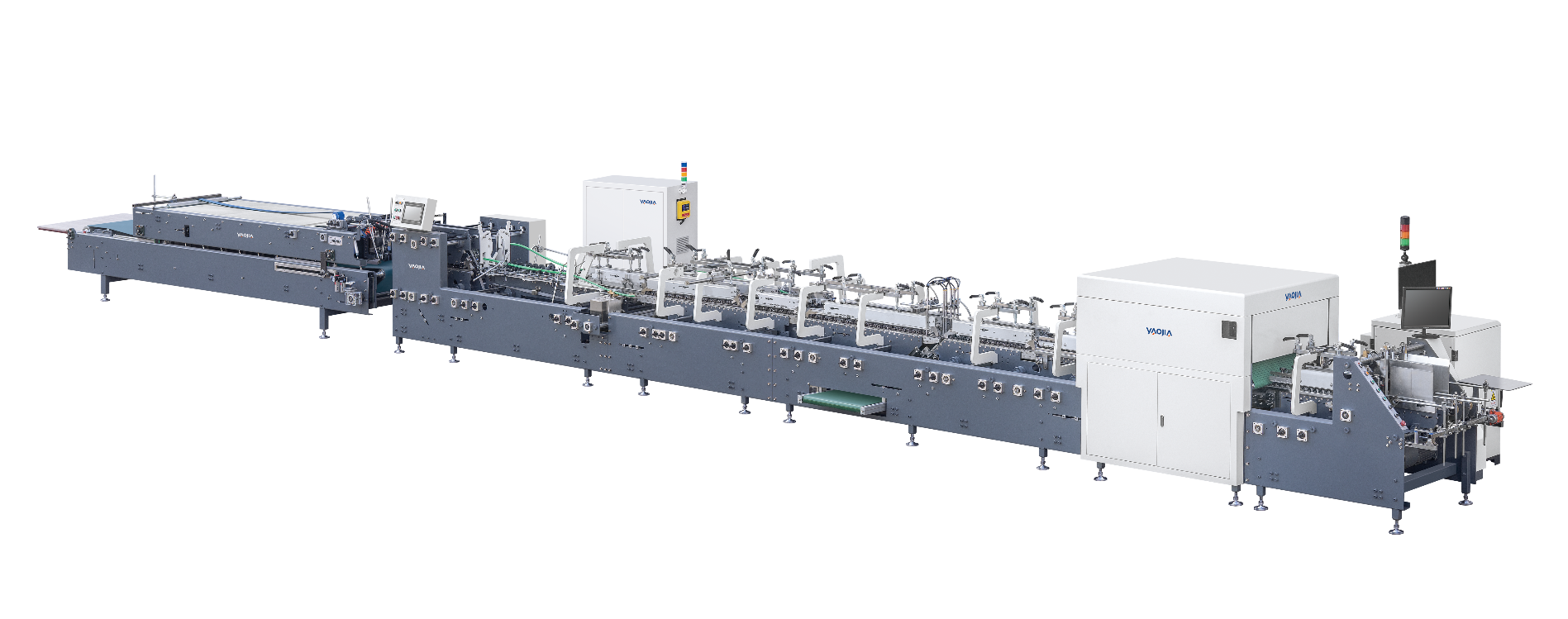

Automatic High Speed Multifunction Inspection Folder Gluer Machine YJP-700/900
Configuration of Inspection
|
Inspection
Item |
Defect |
|
Printing |
Hickl, color difference, white dot, missing
print, knife line, overprint offset, die cutting offset, font incomplete,
stamping(sliver) offset. |
|
3D Scratch Varnish |
Embossing offset, creasing offset, lamination
wrinkle, lamination scratching, lamination bubble, crepe paper, varnish defect. |
|
Barcode |
Variable information identification and
comparison, wrong code, duplicate code, no code, etc. |
|
Reverse Side |
White spot, leakage, incomplete font, dirt,
mosquitoes, blood stains. |
Specifications
|
Model |
YJP-700 |
YJP-900 |
|
Max. Sheet Size |
650×600mm |
850×600mm |
|
Min. Sheet Size |
126×100mm |
126×100mm |
|
Materials |
Paperboard 200-800g/m² |
Paperboard 200-800g/m² |
|
Machine Dimension |
18×1.7×1.7M |
18.5×1.7×1.7M |
|
Air Supply |
1m³/min 6bar |
1m³/min 6bar |
|
Max. Belts Speed |
350M/min |
350M/min |
|
Max. Inspection Width |
650mm |
800mm |
