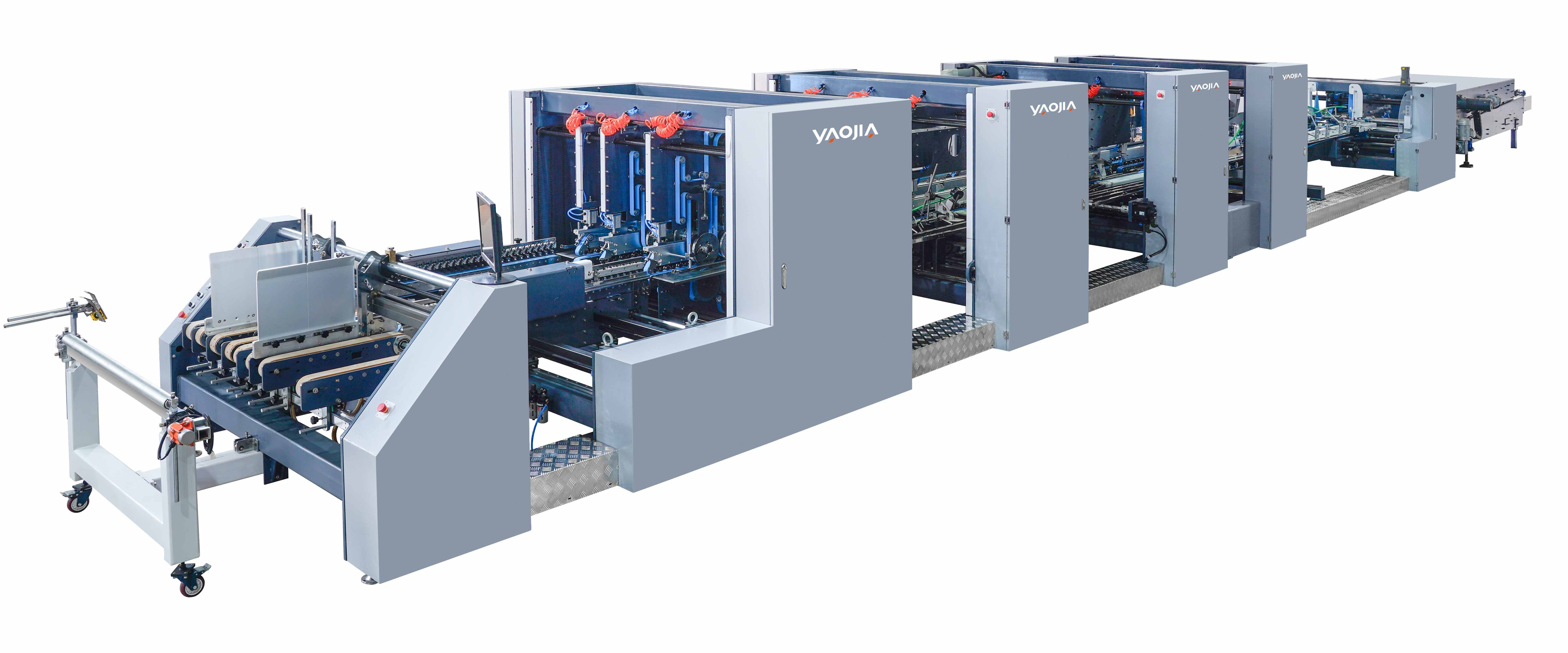

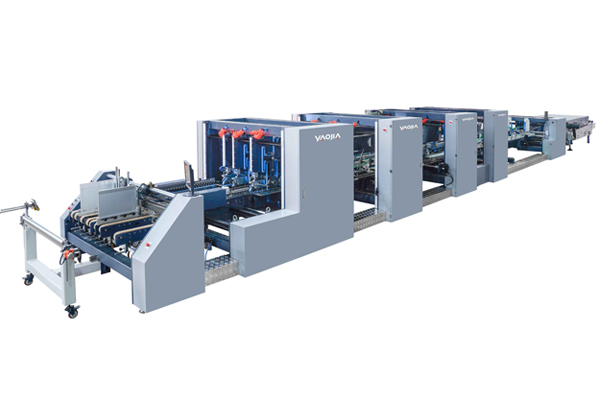

Corrugated Folder Gluing Machine is suitable for medium and large sized boxes in the heavy packaging industry. With high productivity, it offers the flexibility to run thin solid board to thick corrugated carton.
Modular design allows different configurations, to meet customer's needs. All sections with independent servo-motor driving system.
TECHNICAL DATA：
|
Model |
YJM-G1450 |
YJM-G1650 |
YJM-G1850 |
|||||||||
|
Cardboard Materials |
200-1200g/m² |
200-1200g/m² |
200-1200g/m² |
|||||||||
|
Corrugated Type |
E, C, B, AB 3&5 Layers |
E, C, B, AB 3&5 Layers |
E, C, B, AB 3&5 Layers |
|||||||||
|
Machine Speed |
300m/min |
300m/min |
300m/min |
|||||||||
|
Blank Width |
290mm-1450mm |
290mm-1650mm |
290mm-1850mm |
|||||||||
|
Glue Type |
Water-Based Glue |
Water-Based Glue |
Water-Based Glue |
|||||||||
|
Installation |
C |
AC |
PC |
SL |
C |
AC |
PC |
SL |
C |
AC |
PC |
SL |
|
Length |
17.4m |
19.4m |
22.4m |
22..4m |
19.2m |
21.2m |
24.2m |
24.2m |
19.2m |
21.2m |
24.2m |
24.2m |
|
Width |
2.2m |
2.2m |
2.2m |
2.2m |
2.4m |
2.4m |
2.4m |
2.4m |
2.6m |
2.6m |
2.6m |
2.6m |
|
Height |
1.7m |
1.7m |
1.7m |
1.7m |
2.0m |
2.0m |
2.0m |
2.0m |
2.0m |
2.0m |
2.0m |
2.0m |
|
Weight |
12T |
13.5 T |
14.5 T |
14.8 T |
13T |
14.5T |
15.5T |
15.8T |
15T |
17T |
18T |
18.3T |
|
Power Supply |
40kw |
45kw |
50kw |
56kw |
40kw |
45kw |
50kw |
56kw |
40kw |
45kw |
50kw |
56kw |
C: Without pre-folding section and crash lock section, suitable for straight-line boxes.
AC: Without pre-folding section, suitable for straight-line, crash-lock bottom & double wall boxes.
PC: Suitable for straight-line, crash-lock bottom & double wall boxes.
SL: Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.
