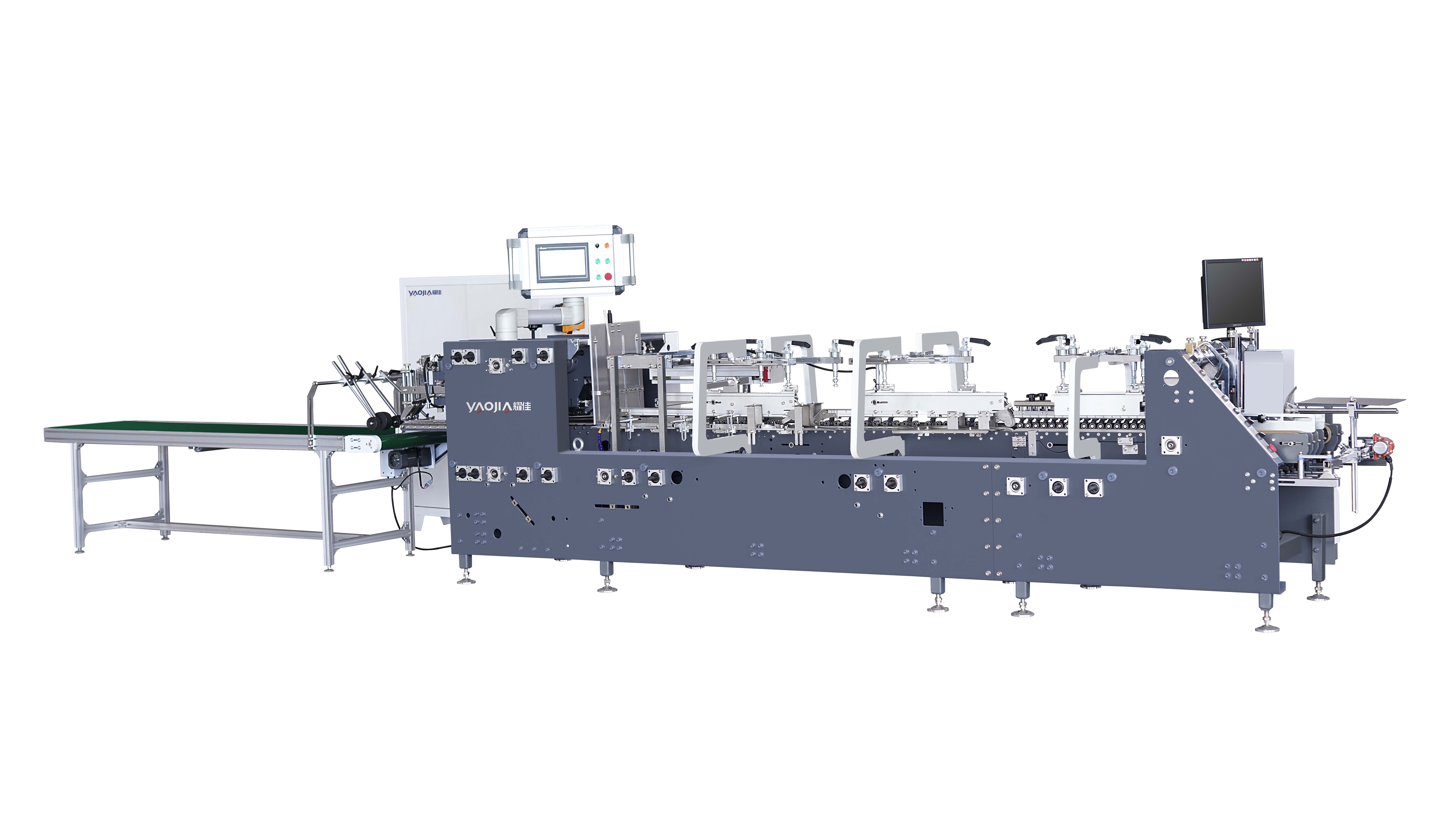

Automatic Three-Dimensional Box Folder Gluer Machine

Exclusive model for three-dimensional box, such as envelop with capacity, cosmetic box, pharmaceutical box and so on. Flexible change-over, can adopt with hot melt gluing system.

Inquiry


Specifications

Model
YJL-600
Materials
Paperboard 200-800g/m²

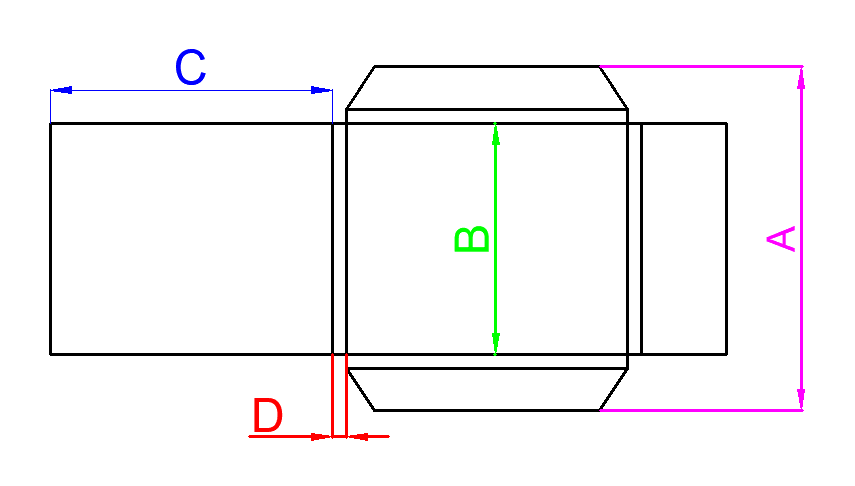

A Max Size
600mm
B Size
80-550mm
C Size
60-400mm
D Size
4-20mm
Max. Working Speed
100M/min
Machine Dimension
8×1.3×1.3M
Machine Weight
2T
Power
14KW
Air Supply
10m³/h 6bar 60L


Machine Video




If you have any enquiry about quotation or cooperation,please feel free to email us at simon@yao-jia.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
